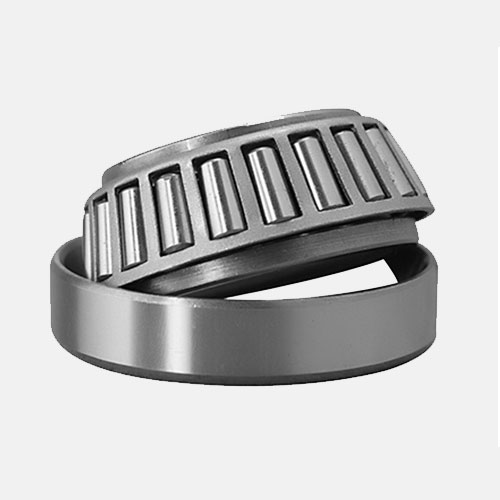

Tapered roller bearing

Product Search

Deep groove ball bearing

Self aligning ball bearing

Cylindrical roller bearing

Spherical roller bearing

Angular contact ball bearing

Tapered roller bearing

Thrust ball bearing

Thrust roller bearing

Pillow block bearing

Needle bearing

Non standard bearing

Other types bearing

Product Parameters

Model	Overall dimension (mm)			Limit speed (RPM)		Rated load(N)		Weight
Model	d	D	B	Grease	Oil lubrication	Cr(N)	Cor(N)	Weight
30202	15	35	11	12000	16000	14.9	13.4	0.053
30244	220	400	73	—	—	—	—	35.5
30340	200	420	80	820	1100	1120	1450	53.5
30352	260	540	114	—	—	—	—	108
32205	25	52	19.25	—	—	—	—	0.174
32004	20	42	15	8500	11000	25	28.2	0.095
33205	25	52	22	7000	9000	47	55.8	0.216
30305	25	62	17	6300	8000	46.8	48	0.263
30204	20	47	14	8000	10000	28.2	30.5	0.126
31305	25	62	17	6300	8000	40.5	46	0.262
30304	20	52	15	8300	11000	30.5	28.4	0.17
32305	25	62	24	6300	8000	61.5	68.8	0.368
32304	20	52	21	7500	9500	42.8	46.2	0.23
329/28	28	45	12	750D	9500	16.8	22.8	0.069
329/22	22	40	12	8500	11000	15	20	0.065
30302	15	42	13	9000	12000	22.8	21.5	0.094
320/28	28	52	16	6700	8500	31.5	40.5	0.142
320/22	22	44	15	8000	10000	26	30.2	0.1
30203	17	40	12	9000	12000	20.8	21.8	0.079
332/28	28	58	24	6300	8000	58	68.2	0.286
